The logic behind the FirmaSAT On-line Validator

This page explains the logic behind the FirmaSAT On-line Validator and shows the function calls from the FirmaSAT library.

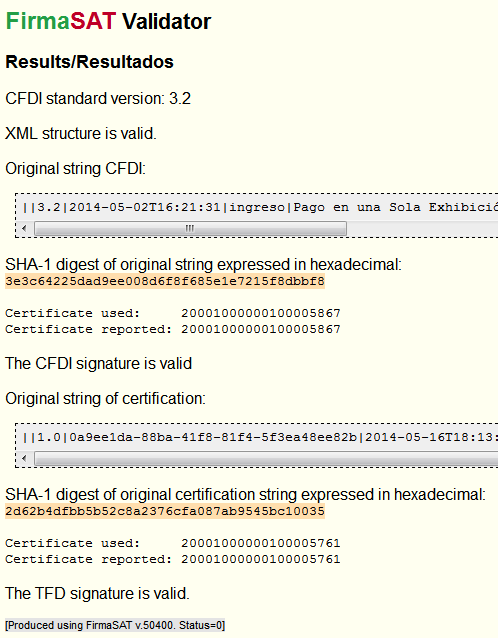

Example output

Validator results

Example input files

Input XML file (Combrobante archivo XML): fname = "Prueba2Notario_iedu-tfd.xml"
PAC X.509 Certificate (Certificado del SAT): certname = "pac.cer"

Procedure

Each step of the procedure is described below. A simplified copy of the original C/C++ code is given together with the relevant C# code statements and the closest command-line instruction.

Checking the version
Checking the XML structure
Getting the original string ("piped string"/cadena orginal)
Getting the digest of the original string in hexadecimal
Getting the certificate serial numbers
Is the signature valid?
Do we have a TimbreFiscalDigital (TFD) element?
Getting the TFD original string of certification
Getting the digest of the original certification string in hexadecimal
Getting the certificate serial numbers used for the TimbreFiscalDigital
Is the TFD signature valid?
Display the version of FirmaSAT used

Code in C/C++ is shown in the form

long receiptver = SAT_XmlReceiptVersion(fname, 0);

Code in C# is shown in the form

int receiptver = Sat.XmlReceiptVersion(fname);

The closest command-line instruction is shown in the form

FirmaSAT RECEIPTVERSION fname.xml

VB6/VBA programmers should be able to figure out their equivalent code from the C code. Similarly, VB.NET and Java programmers should be able to derive their code from the C# code. The command-line instructions should at least give an idea as to how to derive the required information.

1. Checking the version

Version

Reference: Get XML Receipt Version Number

long receiptver = SAT_XmlReceiptVersion(fname, 0);
switch (receiptver) {
case 2:
    recverstr = "2.0";
    doctype = "CFD";
    is_cfdi = 0;
    break;
case 3:
    recverstr = "3.0";
    doctype = "CFDI";
    is_cfdi = 1;
    break;
case 22:
    recverstr = "2.2";
    doctype = "CFD";
    is_cfdi = 0;
    break;
case 32:
    recverstr = "3.2";
    doctype = "CFDI";
    is_cfdi = 1;
    break;
default:
    ERROR();
    break;
}
printf("%s standard version: %s\n", doctype, recverstr);

int receiptver = Sat.XmlReceiptVersion(fname);

FirmaSAT RECEIPTVERSION fname.xml

2. Checking the XML structure

References: Validate XML Document, Error-related procedures

r = SAT_ValidateXml(fname, 0);
if (0 == r) {
    printf("XML structure is valid\n");
} else {
    printf("XML structure is NOT valid\n");
    SAT_LastError(errbuf, SAT_MAX_ERROR_CHARS);
    printf("%s\n", errbuf);
    // But only quit if it does not pass the "loose" test
    r = SAT_ValidateXml(fname, SAT_XML_LOOSE);
    if (r != 0) ERROR();
}

r = Sat.ValidateXml(fname);
errbuf = General.LastError();
r = Sat.ValidateXml(fname, XmlOption.Loose);

FirmaSAT XMLOK fname.xml
FirmaSAT XMLOK -l fname.xml

3. Getting the original string ("pipe string"/cadena orginal)

Original string

Reference: Make Pipe String

nchars = SAT_MakePipeStringFromXml(NULL, 0, fname, 0);
if (nchars < 0) ERROR();
pipebuf = MALLOC(nchars+1);
nchars = SAT_MakePipeStringFromXml(pipebuf, nchars, fname, 0);

string pipebuf = Sat.MakePipeStringFromXml(fname);
if (pipebuf.Length == 0) ERROR();

FirmaSAT PIPESTRING fname.xml

4. Getting the digest of the original string in hexadecimal

Digest in hex

Reference: Make Digest

char digest[SAT_MAX_HASH_CHARS+1] = { 0 };
r = SAT_MakeDigestFromXml(digest, sizeof(digest)-1, fname, 0);
printf("%s\n", digest);

string digest = Sat.MakeDigestFromXml(fname);
Console.WriteLine("{0}", digest);

FirmaSAT FORMDIGEST fname.xml

5. Getting the certificate serial numbers

References: Query a Certificate, Get XML Attribute

char certused[32] = { 0 };
char certrept[32] = { 0 };
r = SAT_QueryCert(certused, sizeof(certused)-1, fname, "serialNumber", 0);
printf("Certificate used:     %s\n, certused);
r = SAT_GetXmlAttribute(certrept, sizeof(certrept)-1, fname, "noCertificado", "Comprobante");
printf("Certificate reported: %s\n, certrept);

string certused = Sat.QueryCert(fname, Query.serialNumber);
Console.WriteLine("Certificate used:     {0}", certused);
string certrept = Sat.GetXmlAttribute(fname, "noCertificado", "Comprobante");
Console.WriteLine("Certificate reported: {0}", certrept);

FirmaSAT QUERYCERT -q serialNumber fname.xml
FirmaSAT ATTRIBUTE -a noCertificado -e Comprobante fname.xml

6. Is the signature valid?

Reference: Verify XML Signature

r = SAT_VerifySignature(fname, NULL, 0);
if (0 == r) {
    printf("The %s signature is valid\n", doctype);
} else {
    printf("The %s signature is NOT valid\n", doctype);
    ERROR();
}

r = Sat.VerifySignature(fname);

FirmaSAT VERIFYSIG fname.xml

7. Do we have a TimbreFiscalDigital (TFD) element?

if (is_cfdi) {  // See step 1
    long r = SAT_GetXmlAttribute(NULL, 0, fname, "selloCFD", "tfd:TimbreFiscalDigital");
    if (r < 0) ERROR("the TFD signature is missing");
}

string s = Sat.GetXmlAttribute(fname, "selloCFD", "tfd:TimbreFiscalDigital");
if (s.Length == 0) ERROR("the TFD signature is missing");

FirmaSAT ATTRIBUTE -a selloCFD -e tfd:TimbreFiscalDigital fname.xml

8. Getting the TFD original string of certification

TFD original string of certification

Reference: Timbre Fiscal Digital (TFD) element

nchars = SAT_MakePipeStringFromXml(NULL, 0, fname, SAT_TFD);
if (nchars < 0) ERROR();
pipebuf = MALLOC(nchars+1);
nchars = SAT_MakePipeStringFromXml(pipebuf, nchars, fname, SAT_TFD);

string pipebuf = Tfd.MakePipeStringFromXml(fname);
if (pipebuf.Length == 0) ERROR();

FirmaSAT PIPESTRING -f fname.xml

9. Getting the digest of the original certification string in hexadecimal

Digest of string of certification

char digest[SAT_MAX_HASH_CHARS+1] = { 0 };
r = SAT_MakeDigestFromXml(digest, sizeof(digest)-1, fname, SAT_TFD);
printf("%s\n", digest);

string digest = Tfd.MakeDigestFromXml(fname);
Console.WriteLine("{0}", digest);

FirmaSAT FORMDIGEST -f fname.xml

10. Getting the certificate serial numbers used for the TimbreFiscalDigital

char certused[32] = { 0 };
char certrept[32] = { 0 };
r = SAT_QueryCert(certused, sizeof(certused)-1, certname, "serialNumber", 0);
printf("Certificate used:     %s\n, certused);
r = SAT_GetXmlAttribute(certrept, sizeof(certrept)-1, fname, "noCertificadoSAT", "tfd:TimbreFiscalDigital");
printf("Certificate reported: %s\n, certrept);

string certused = Sat.QueryCert(certname, Query.serialNumber);
Console.WriteLine("Certificate used:     {0}", certused);
string certrept = Sat.GetXmlAttribute(fname, "noCertificadoSAT", "tfd:TimbreFiscalDigital");
Console.WriteLine("Certificate reported: {0}", certrept);

FirmaSAT QUERYCERT -q serialNumber certname.cer
FirmaSAT ATTRIBUTE -a noCertificadoSAT -e tfd:TimbreFiscalDigital fname.xml

11. Is the TFD signature valid?

r = SAT_VerifySignature(fname, certname, SAT_TFD);
if (0 == r) {
    printf("The TFD signature is valid\n");
} else {
    printf("The TFD signature is NOT valid\n");
    ERROR();
}

r = Tfd.VerifySignature(fname, certname);

FirmaSAT VERIFYSIG -f -c certname.cer fname.xml

12. Display the version of FirmaSAT used

printf("Produced using FirmaSAT v.%ld.", SAT_Version());

Console.WriteLine("Produced using FirmaSAT v.{0}", General.Version());

FirmaSAT LIBINFO

Getting FirmaSAT

You can download a fully-functional trial version of FirmaSAT from here.
